Installation - ST3000BP series

1. understructure - same procedure as ordinary access floor system
2. lay in base panels

1. lift base panels by using 3-sucker lifters.
2. lay panels on grid in order, check leveling in sequence.

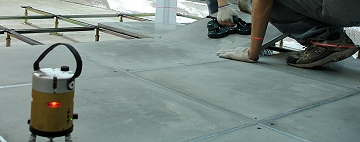

Install access panel and check level in sequence

top finished - stoneware tiles: granite, marble, porcelain tiles,...

1. clean and rinse panels' surface and stone tiles' back.
2. apply thin-set adhesive by 10 mm square notched trowel, coverage about 5~6 piece access panels each time.
3. apply avg. 1 mm thick thin-set adhesive at stone tiles' back.
4. install stone tile, one-to-one alignment on top of the access panel. insert tile spacer at angles, 2 mm gap in-between tiles forms automatically, check leveling one by one in sequence.
5. clear thin-set adhesives residual inside the 2 mm gap in-between tiles.
6. grout the gaps: allow 24 hours thin-set adhesives setting time before grouting.
   (follow instruction by the adhesives and grout manufacturer)

rinse panels and tiles		apply adhesive on panels		apply adhesives on tiles		insert tile spacers, form 2 mm gap for grouting, check leveling
