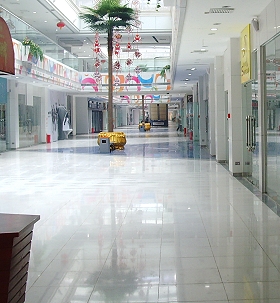

1. commercial and institutional public interiors,
   lobby, corridor, museum,
   hopping mall, department stores,
   showroom, ...
2. general office - shine, easy clean access floor is now available for using in office.
   ST3000AM is good option using in general office areas in sub-tropic and tropic nations such as Middle East, South East Asia, South America, Northern Africa, ...
   where carpet tile used to be a comprised choice on top of conventional access floors.
3. extra-heavy traffic areas
   The agglomerate granite access floors have higher hardness, which is suitable to be using in extra-heavy traffic areas such airport, bank, transportation stations.
4. wet areas: such as in restaurant, lavatory, tea room.

systems

ST3200AM

ST3000AM

top finish

agglomerate marble,
agglomerate granite*
granite**

agglomerate marble,
agglomerate granite*
granite**

access panel total thickness

32 mm

37 mm

stone tile thickness

12 mm

12 mm

base panel thickness

20 mm

25 mm

access panel size

602 mm X 602 mm

602 mm X 602 mm

system height

100 mm ~ 800 mm

100 mm ~ 800 mm

system weight

avg. 81 kg / m²

avg. 97 kg / m²

loading property
< 2.0 mm depression

medium
568 kg (1250 lb)

heavy
680 kg (1500 lb)

flammability

non-combustible

non-combustible

LEED compliance -
top finish stone tiles

agglomerate marble and granite tiles, made of
avg. 95% recycled

agglomerate marble and granite tiles, made of
avg. 95% recycled

LEED compliance -
base panel

In-filled by slag
cement concrete

In-filled by slag
cement concrete
