Amongst the Netfloor products, AD-600 and CA-400 are the most popular Product line. The AD-600 system has gained wide acceptance in the U.S., U.K., and CA-400 system is well accepted in East Asia. AD-600 is 60 mm in overall height, with 55 mm clearance at the Cable Trenches. CA-400 is 40 mm in overall height, with 35 mm clearance at the Cable Trenches. Each UniPanel (main panel) of CMS system is composed of 16 Sub-Panels. Each Sub-panels supported on 4 build-in pedestals. The total of 64 pedestals give the CMS Systems extremely high uniform load bearing property, estimated more than 15 to 20 times to that of traditional raised access floor.

The System
Module set:		600 mm x 600 mm (24" x 24") (UniPanel + Cable Trenches)
Height:		60 mm (2.36") for AD-600 / 40 mm (1.57") for CA-400

Cable Trench
width:		90 mm (3.54")
clearance:		55 mm (2.16") for AD-600 / 35 mm (1.37") for CA-400

System Weight
AD-600:		13.6 kg per sq. meter (2.78 LB per SF)
CA-400:		11.6 kg per sq. meter (2.37 LB per SF)

Environment Protection Netfloor CMS series are designed at environment protection concept. All components of the system, UniPanel (main panel), Base Connector, Steel Cable Trench Caps, Ramp, Aluminum Skirting and Aluminum Ramp Rail are re-usable and 100 percent recyclable.

Full-height and half-height open plan partitions installed above Netfloor CMS series, CMS systems provide highest flexibility for power and data cables to extend and connect at any point of the partitions.

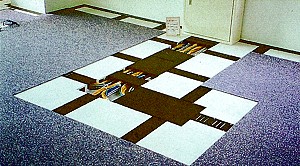

Cable-influx units installed at the entrance of cables, to receive large amounts of cables at the beginning and distribute through Cable Trenches.

School classroom always congested by monitor and P/C. CMS series facilitate highest accessibility and flexibility for routing, extension, connection and re-location.
